Modem guide for FTTP, FTTC, and HFC

Step 1

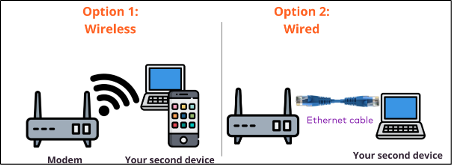

Connect your 💻 device to your modem using one of the 2 options described below:

Option 1: Wireless

Connect your💻 device to your Home Network, also known as Home Wi-Fi. ⚠️Your home doesn’t have Internet yet, but that’s ok, you can still access your Home Network.

If you don’t know how to connect to your Home Network, follow this guide first.

Option 2: Wired

Plug an Ethernet cable (see the picture) from your 💻 to the back part of your modem.

Step 2

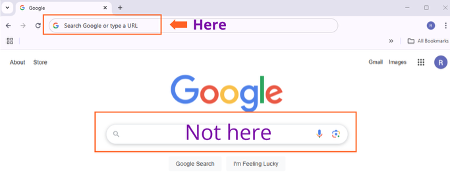

On your 💻 device, open your internet browser (e.g. Chrome, Safari, Edge), type http://tplinkwifi.net or http://192.168.1.1 on the address bar, and press enter.

Step 3

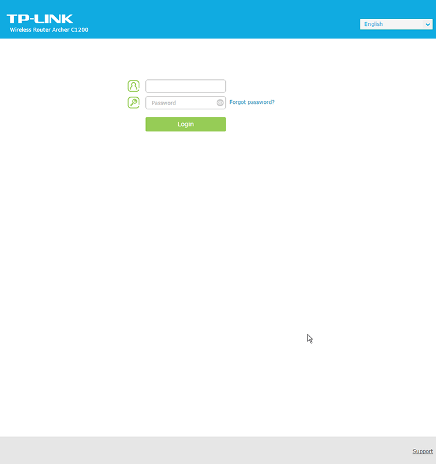

⚠️ The admin password is not the same as your Home Wi-Fi password. If you can’t remember it we’ll help you below.

Can’t remember your admin password? you’ll have to factory reset your modem. Press the ‘Reset’ button using a pin for 10 seconds until the modem lights are off. Wait for 5 minutes and go back to Step 1.

⚠️ Be aware than when resetting your modem your Home Wi-Fi name & password with change to the default. You’ll be able to define a special name & password if you want on Step 7.

Step 4

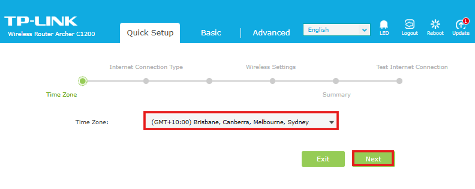

Once logged in the first time, you’ll be routed to ‘Quick Setup’.

Select your ‘Time Zone’ then click ‘Next’.

Step 5

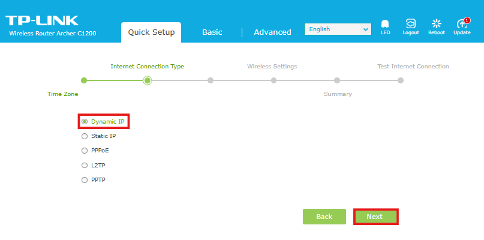

Make sure to choose ‘Dynamic IP’ then hit ‘Next’.

Step 6

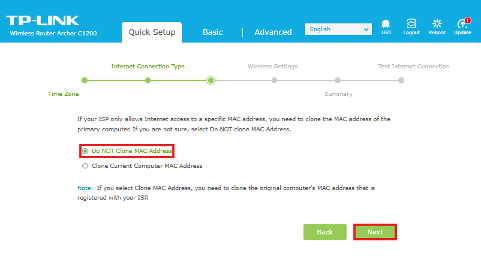

Keep ‘Router MAC Address’ as ‘Use Default MAC’.

Click Next.

Step 7

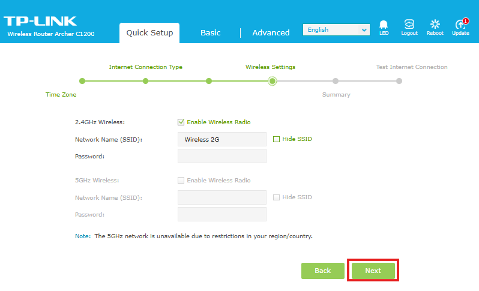

Set up your Wi-Fi settings:

Wireless Radio: Enable

Network Name (SSID): [Your network name]

Password: [Your password]

Hit "Next".

Step 8

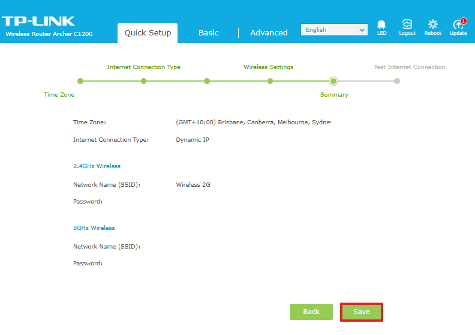

Then the setup summary will be displayed, just proceed by clicking, ‘Save’

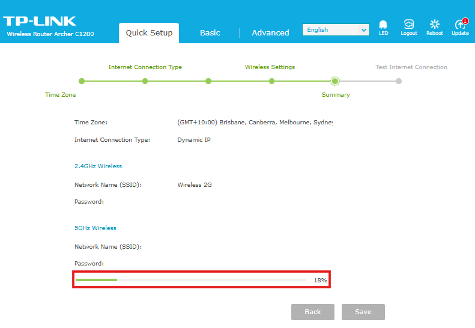

Wait for the progress to complete.

Step 9

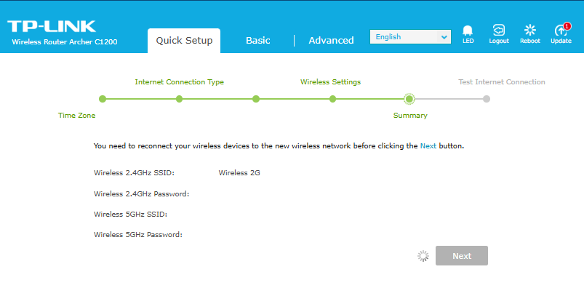

Still on summary, Wireless details will show and you’ll be asked to reconnect to the Wi-Fi network

⚠️Reconnect the Wi-Fi of the device that’s used for the configuration, as it would disconnect from Wi-Fi when the personalised Wi-Fi credentials are applied. Especially if configuration has been done via Wi-Fi.

Step 10

The above guide shows when the router has been factory reset or used for the first time.

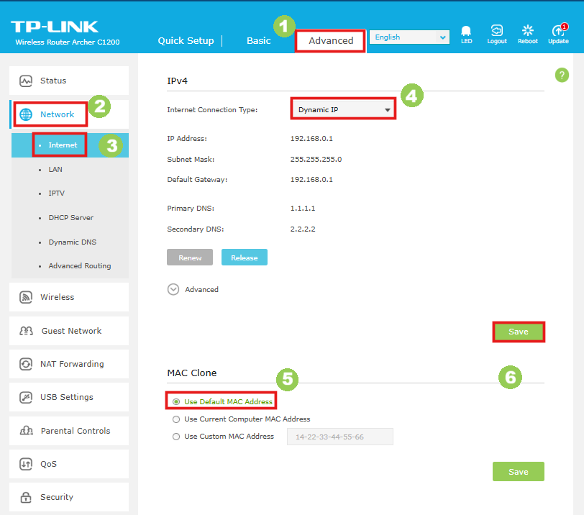

Otherwise, go to, Advanced>Network>Internet at the top of the page and manually Select,

INTERNET CONNECTION TYPE: Dynamic IP

The following settings are set to default if modem is set up the first time or reset to factory default

VLAN Settings: Disabled (may not show and by default it’s disabled)

MTU: 1490-1500
NAT: Enabled

Then just click ‘Save’.

Step 11

Check the Connection:

Check that your internet connection is working properly by accessing www.google.com in your web browser.
Test your speed by typing www.speedtest.net in your web browser and click ‘GO’.

You are connected now to amaysim Home internet!

Are you still not connected? Contact us to help you.

Is this guide helpful? Give us feedback here.

Modem guide for Wi-Fi Settings

Step 1

Connect your 💻 device to your modem using one of the 2 options described below:

Option 1: Wireless

Connect your💻 device to your Home Network, also known as Home Wi-Fi. ⚠️Your home doesn’t have Internet yet, but that’s ok, you can still access your Home Network.

If you don’t know how to connect to your Home Network, follow this guide first.

Option 2: Wired

Plug an Ethernet cable (see the picture) from your 💻 to the back part of your modem.

Step 2

On your 💻 device, open your internet browser (e.g. Chrome, Safari, Edge), type http://tplinkwifi.net or http://192.168.1.1 on the address bar, and press enter.

Step 3

⚠️ the admin password is not the same as your Home Wi-Fi password. If you can’t remember it we’ll help you below.

You will then be asked to ‘Create an administrator password’ then you’ll be logged in.

⚠️ Be aware than when resetting your modem your Home Wi-Fi name & password with change to the default. You’ll be able to define a special name & password if you want on Step 7.

Step 4

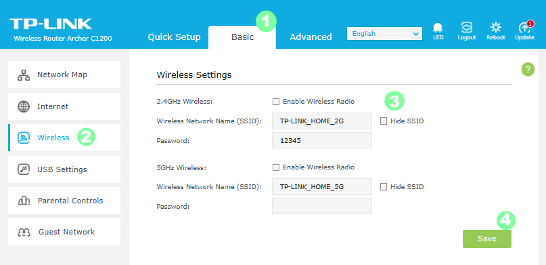

Go to Wireless

If didn’t go thru wizard and you remember your admin login earlier, you may go straight to ‘Wireless’.

Then personalise the Wi-Fi name and password.

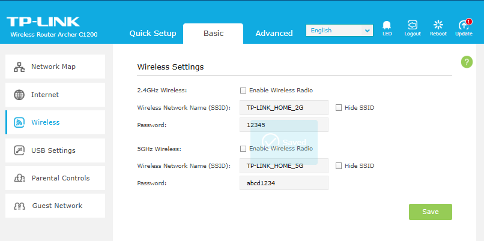

Wireless settings: Set up your Wi-Fi settings:

Network Name (SSID): [Your network name]

Password: [Your password]

Click ‘Save’.

Step 5

Check Wi-Fi once it is successfully saved.

⚠️If Wi-Fi is used for configuration, make sure to reconnect to Wi-Fi once loaded, since Wi-Fi credentials got personalised, as it would disconnect from the Wi-Fi since new credentials are applied.
