Modem guide for FTTP, FTTC, and HFC

Step 1

Connect your 💻 device to your modem using one of the 2 options described below:

Option 1: Wireless

Connect your💻 device to your Home Network, also known as Home Wi-Fi. ⚠️Your home doesn’t have Internet yet, but that’s ok, you can still access your Home Network.

If you don’t know how to connect to your Home Network, follow this guide first.

Option 2: Wired

Plug an Ethernet cable (see the picture) from your 💻 to the back part of your modem.

Step 2

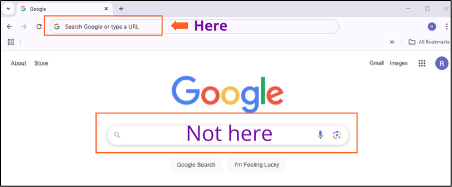

On your 💻 device, open your internet browser (e.g. Chrome, Safari, Edge), type http://192.168.0.1 on the address bar, and press enter.

Step 3

⚠️ The admin password is not the same as your Home Wi-Fi password. If you can’t remember it we’ll help you below.

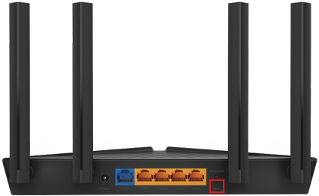

Can’t remember your admin password? you’ll have to factory reset your modem. Press the ‘Reset’ button using a pin (as shown in the screenshot) for 10 seconds until the modem lights are off. Wait for 5 minutes and go back to Step 1.

⚠️ Be aware that when resetting your modem your Home Wi-Fi name & password will change to default. You’ll be able to define a preferred name & password if you want on Step 7.

Step 4

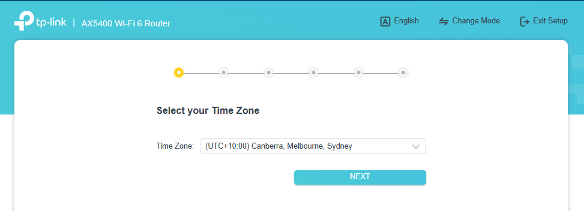

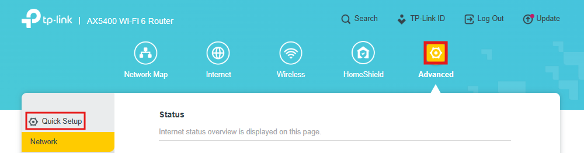

Once logged in, for Quick Setup, click Advanced > Quick Setup. Select the Time Zone that applies then click ‘Next’.

Step 5

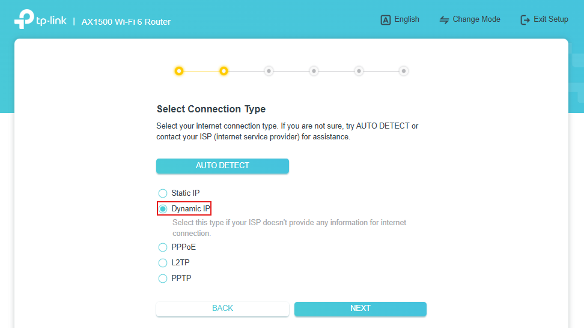

Under ‘Select Connection Type’, make sure to choose ‘Dynamic IP’ then hit ‘Next’.

Step 6

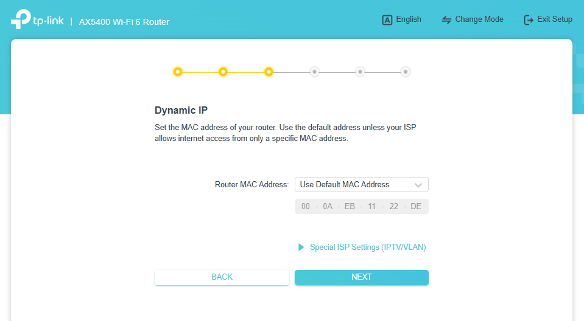

Keep ‘Router MAC Address’ as ‘Use Default MAC’.

Click Next.

Step 7

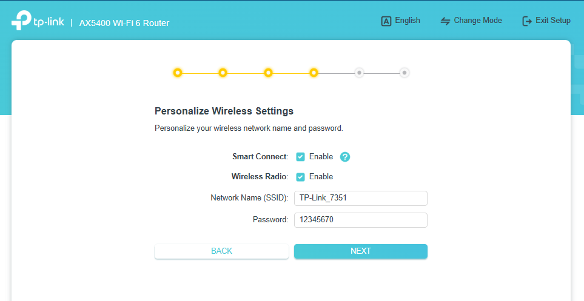

Personalize Wireless settings: Set up your Wi-Fi settings:

Wireless Radio: Enable

Network Name (SSID): [Your network name]

Password: [Your password]

Step 8

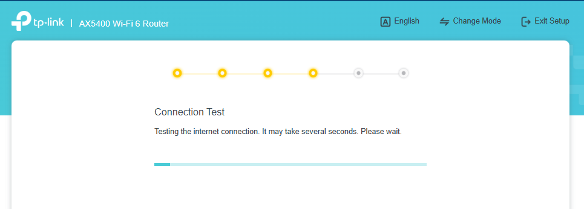

Hit "Next": The router will perform a connection test.

⚠️If Wi-Fi is used for configuration, make sure to reconnect to Wi-Fi once loaded, especially if Wi-Fi credentials got personalised, as it would disconnect from the Wi-Fi since new credentials are applied.

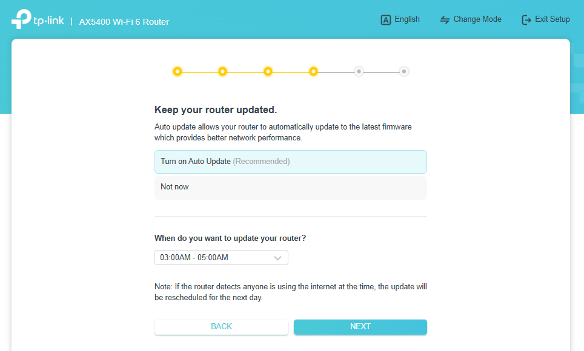

Once Reconnected, Firmware update:

The router will check if a firmware update is needed.

You can choose to update or skip this part.

Step 9

Then the setup summary will be displayed, just proceed by clicking ‘Next’.

Step 10

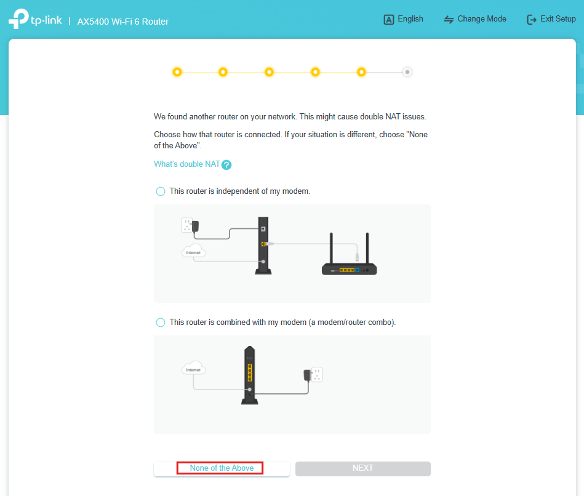

For the page showing ‘This might cause double NAT issues.’, just select ‘None of the Above’.

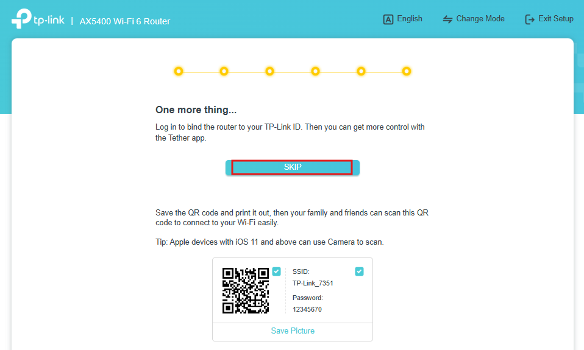

Then just ‘Skip’ TP-Link ID setup and ‘Skip’ the rest and ‘Auto update’ firmware later.

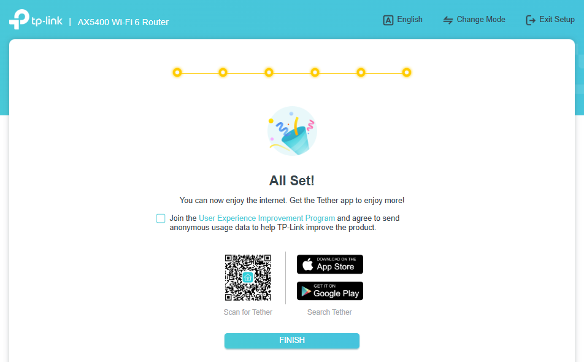

Once it is done, wait for about 1 or 2 minutes until status changes to ‘Connected’.

⚠️Reconnect the Wi-Fi of the device that’s used for the configuration, as it would disconnect from Wi-Fi when the personalised Wi-Fi credentials are applied. Especially if configuration has been done via Wi-Fi.

Advise to upgrade modem to Wi-Fi 6 if complaining about Internet speeds. This modem is Wi-Fi 4 (2.4 GHz band only)

This guide shows when the router has been factory reset or used for the first time.

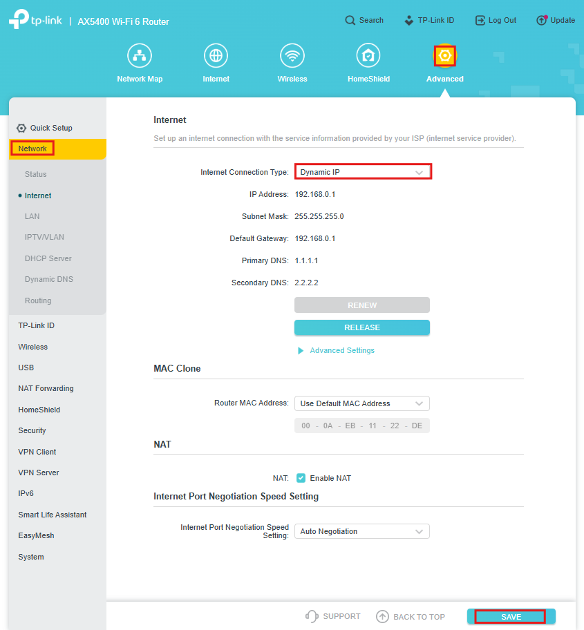

Otherwise, go to, Internet at the top of the page and manually Select,

INTERNET CONNECTION TYPE: Dynamic IP

The following settings are set to default if modem is set up the first time or reset to factory default

VLAN Settings: Disabled

MTU: 1490-1500
NAT: Enabled

Then just click ‘Save’

Step 11

Check the Connection:

Check that your internet connection is working properly by accessing www.google.com in your web browser.
Test your speed by typing www.speedtest.net in your web browser and click ‘GO’.

You are connected now to amaysim Home internet!

Are you still not connected? Contact us to help you.

Is this guide helpful? Give us feedback here.

Modem guide for Wi-Fi Settings

Step 1

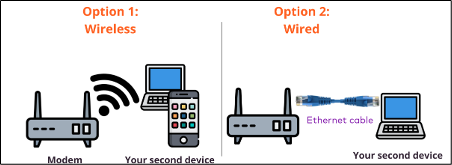

Connect your 💻 device to your modem using one of the 2 options described below:

Option 1: Wireless

Connect your💻 device to your Home Network, also known as Home Wi-Fi. ⚠️Your home doesn’t have Internet yet, but that’s ok, you can still access your Home Network.

If you don’t know how to connect to your Home Network, follow this guide first.

Option 2: Wired

Plug an Ethernet cable (see the picture) from your 💻 to the back part of your modem.

Step 2

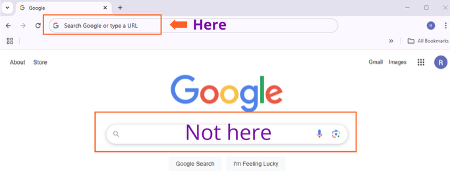

Open your internet browser (e.g. Chrome), type http://tplinkwifi.net or http://192.168.0.1 on the address bar, and press enter.

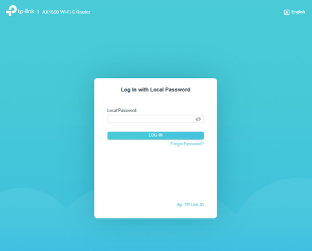

If you are unable to see the login page (see the screenshot), check our FAQ page.

Step 3

⚠️ The admin password is not the same as your Home Wi-Fi password. If you can’t remember it we’ll help you below.

Can’t remember your admin password? you’ll have to factory reset your modem. Press the ‘Reset’ button using a pin for 10 seconds until the modem lights are off. Wait for 5 minutes and go back to Step 1.

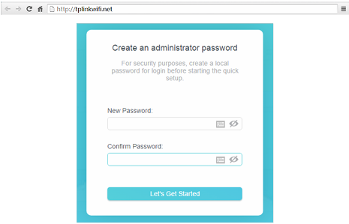

You will then be asked to ‘Create an administrator password’ then you’ll be logged in.

⚠️ Be aware than when resetting your modem your Home Wi-Fi name & password with change to the default. You’ll be able to define a special name & password if you want on Step 7.

Reset Button | Press and hold the button until all LEDs turn on to reset the router to its factory default settings.

For first time set up or after modem router got reset to factory default.

Step 4

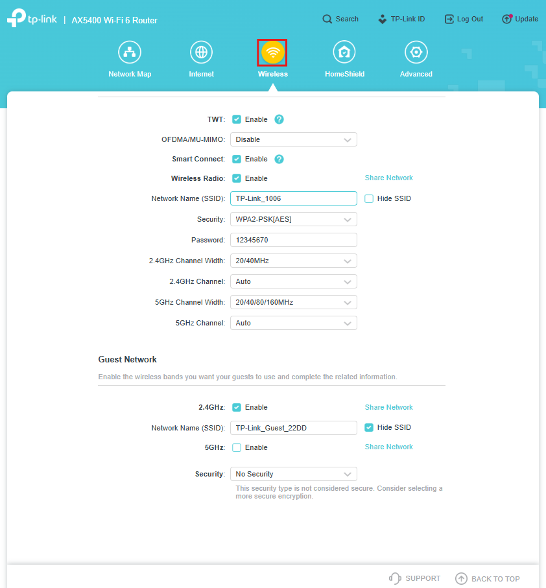

Go to Wireless

If didn’t go thru wizard and you remember your admin login earlier, you may go straight to ‘Wireless’.

Step 5

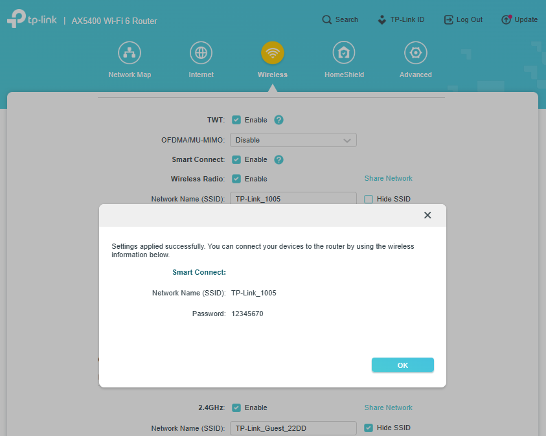

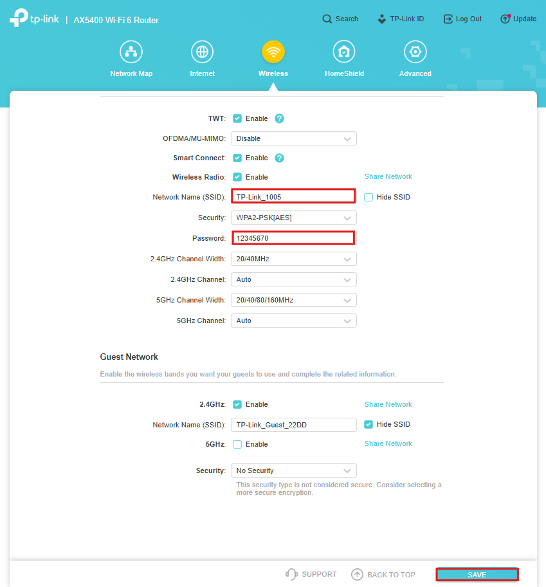

Personalise Wi-Fi credentials as preferred. Then, ‘Save’.

Wireless settings: Set up your Wi-Fi settings:

Network Name (SSID): [Your network name]

Password: [Your password]
