Modem guide for FTTP, FTTC, and HFC

Step 1

Connect your 💻 device to your modem using one of the 2 options described below:

Option 1: Wireless

Connect your💻 device to your Home Network, also known as Home Wi-Fi. ⚠️Your home doesn’t have Internet yet, but that’s ok, you can still access your Home Network.

If you don’t know how to connect to your Home Network, follow this guide first.

Option 2: Wired

Plug an Ethernet cable (see the picture) from your 💻 to the back part of your modem.

Step 2

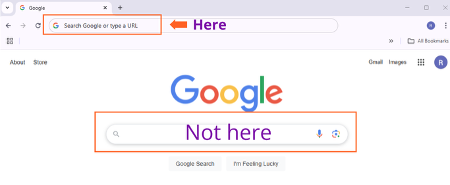

On your 💻 device, open your internet browser (e.g. Chrome, Safari, Edge), type http://192.168.1.1 on the address bar, and press enter.

Step 3

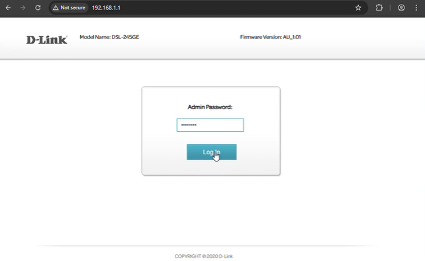

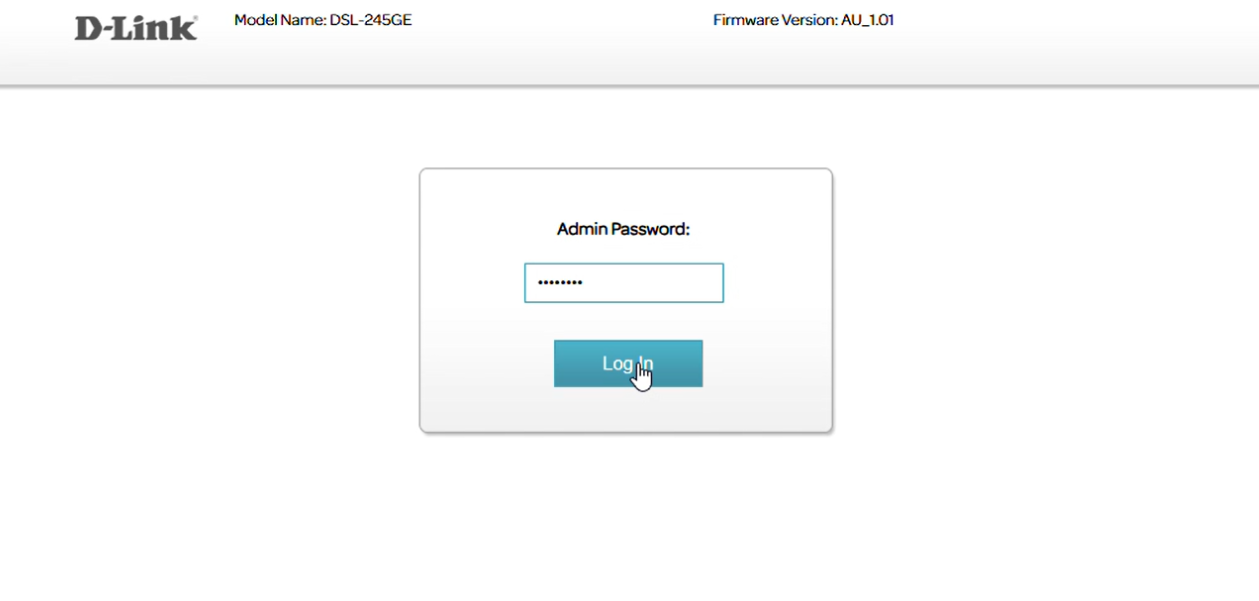

⚠️ The admin password is not the same as your Home Wi-Fi password. If you can’t remember it we’ll help you below.

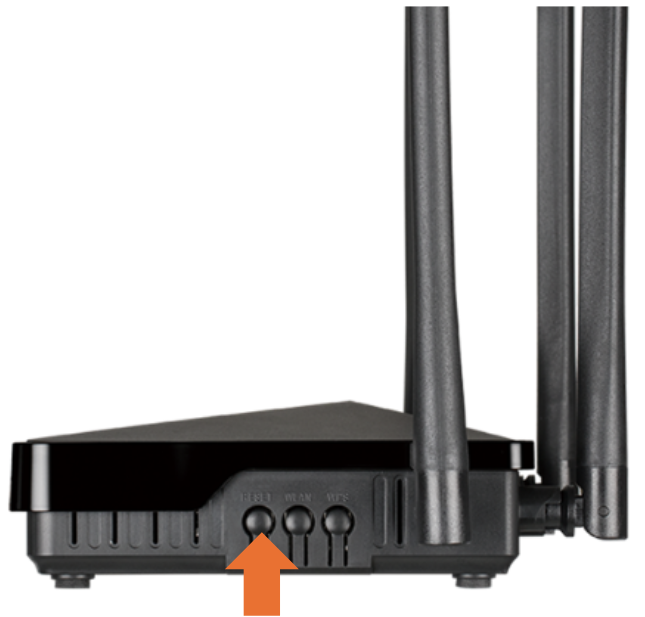

Can’t remember your admin password? you’ll have to factory reset your modem. Press the ‘Reset’ button using a pin (as shown in the screenshot) for 10 seconds until the modem lights are off. Wait for 5 minutes and go back to Step 1.

⚠️ Be aware that when resetting your modem your Home Wi-Fi name & password will change to default. You’ll be able to define a preferred name & password if you want on Step 7.

Step 4

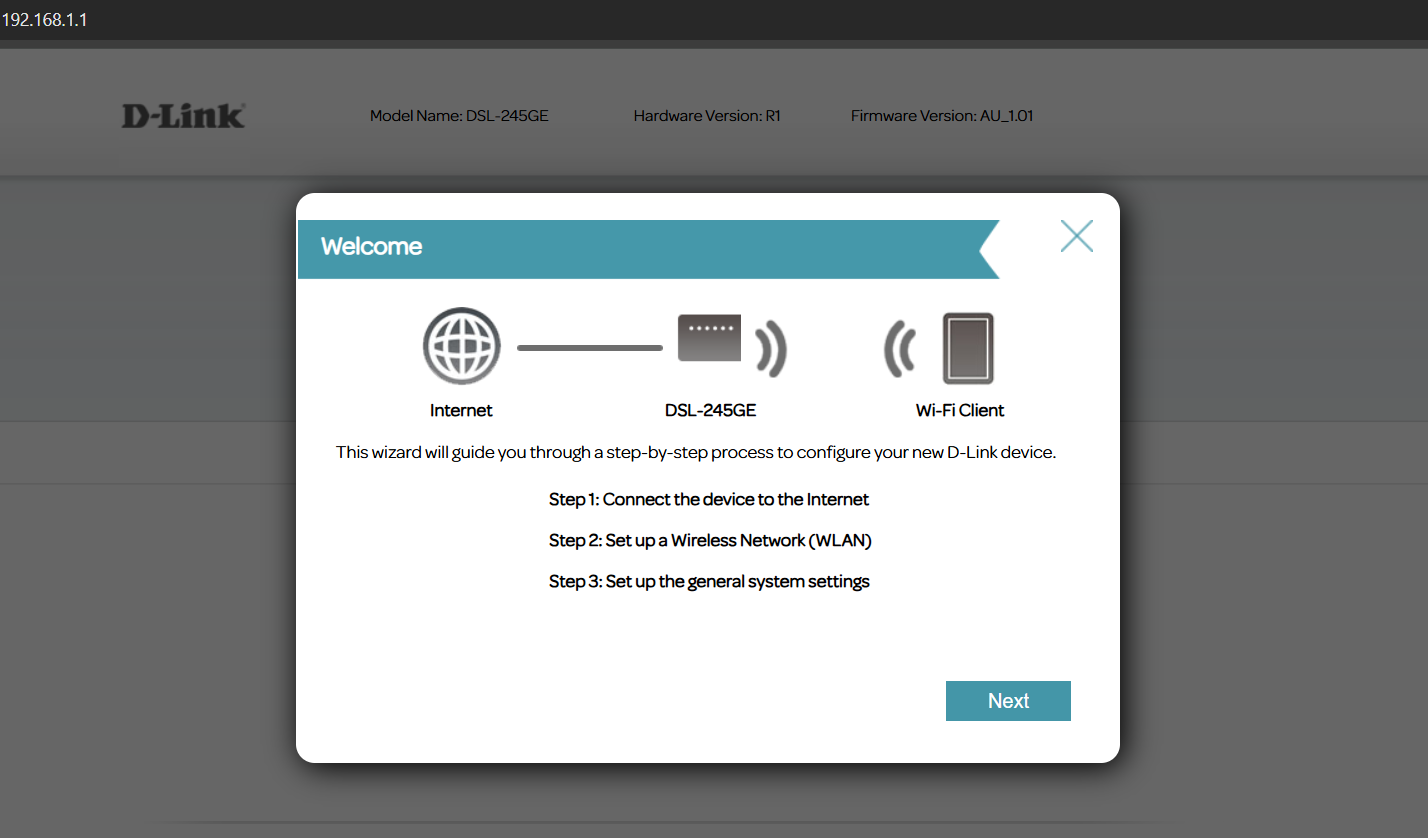

Once logged in, general guide will be displayed, just proceed by clicking ‘Next’.

Step 5

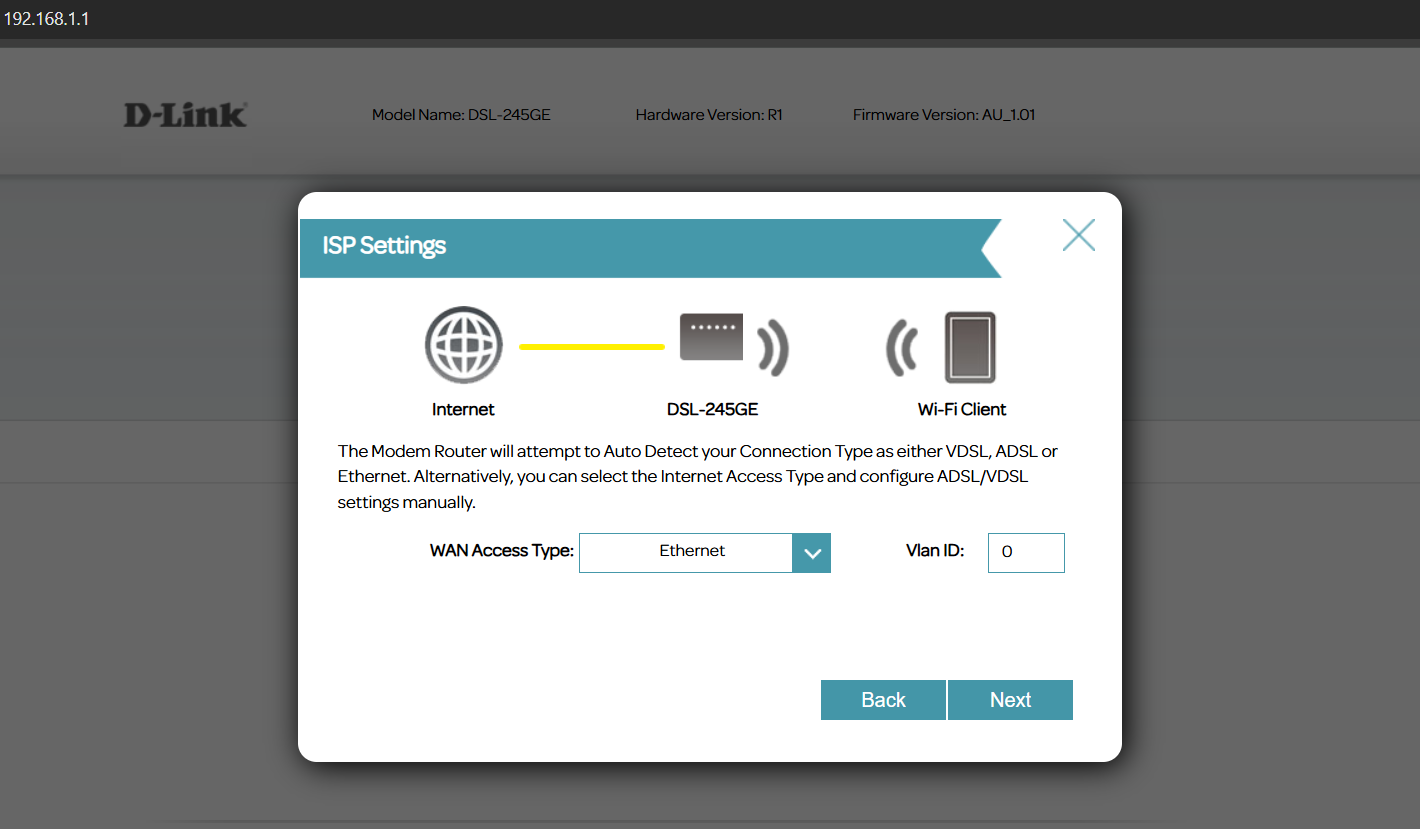

Under ‘ISP Settings’, make sure to choose ‘Ethernet’ for WAN Access Type and set VLAN ID to 0 for disabled VLAN tag, then go ‘Next’.

Step 6

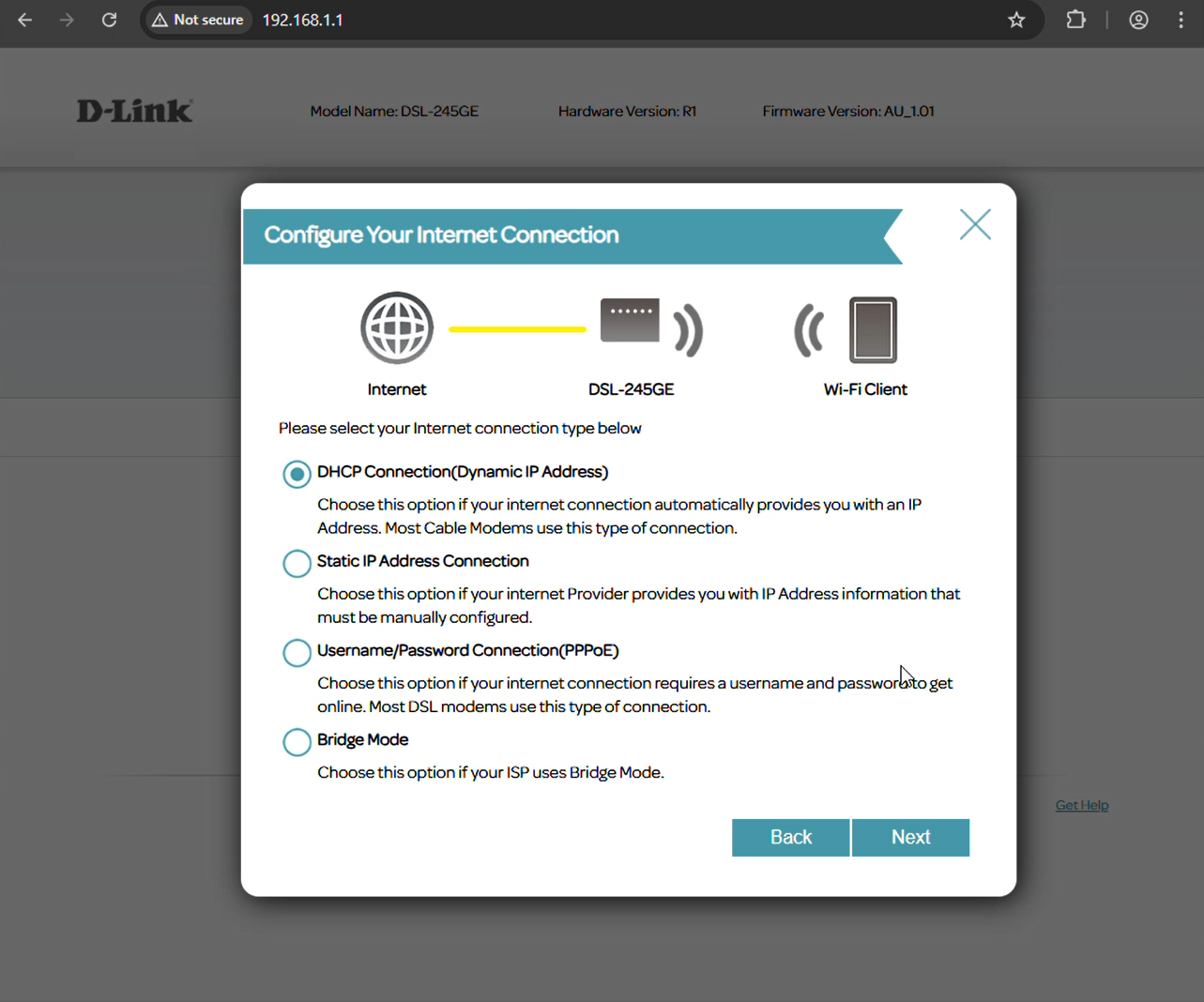

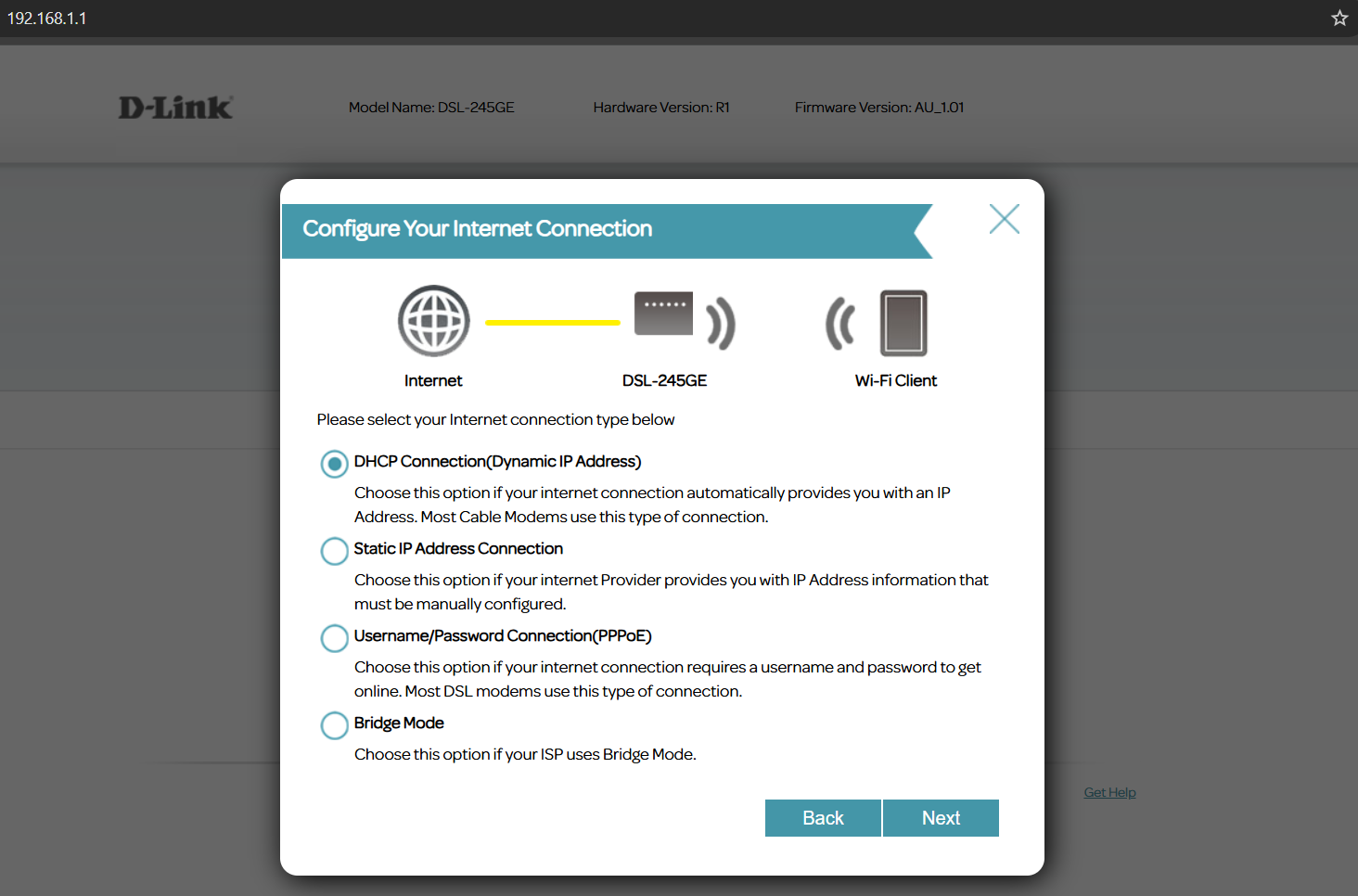

Under ‘Configure Your Internet Connection’, select Internet connection type to ‘DHCP Connection (Dynamic IP Address’.

Click Next.

Step 7

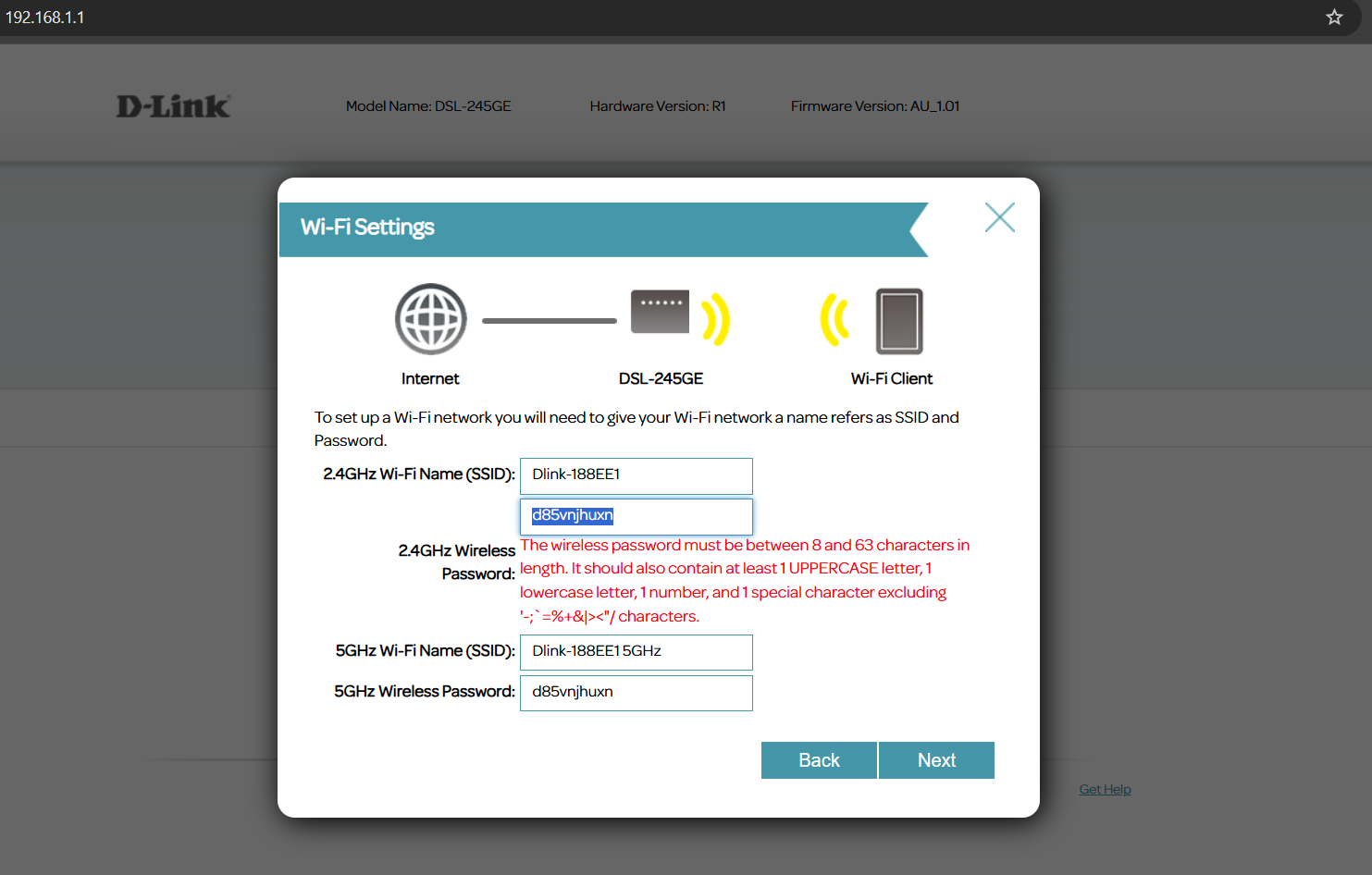

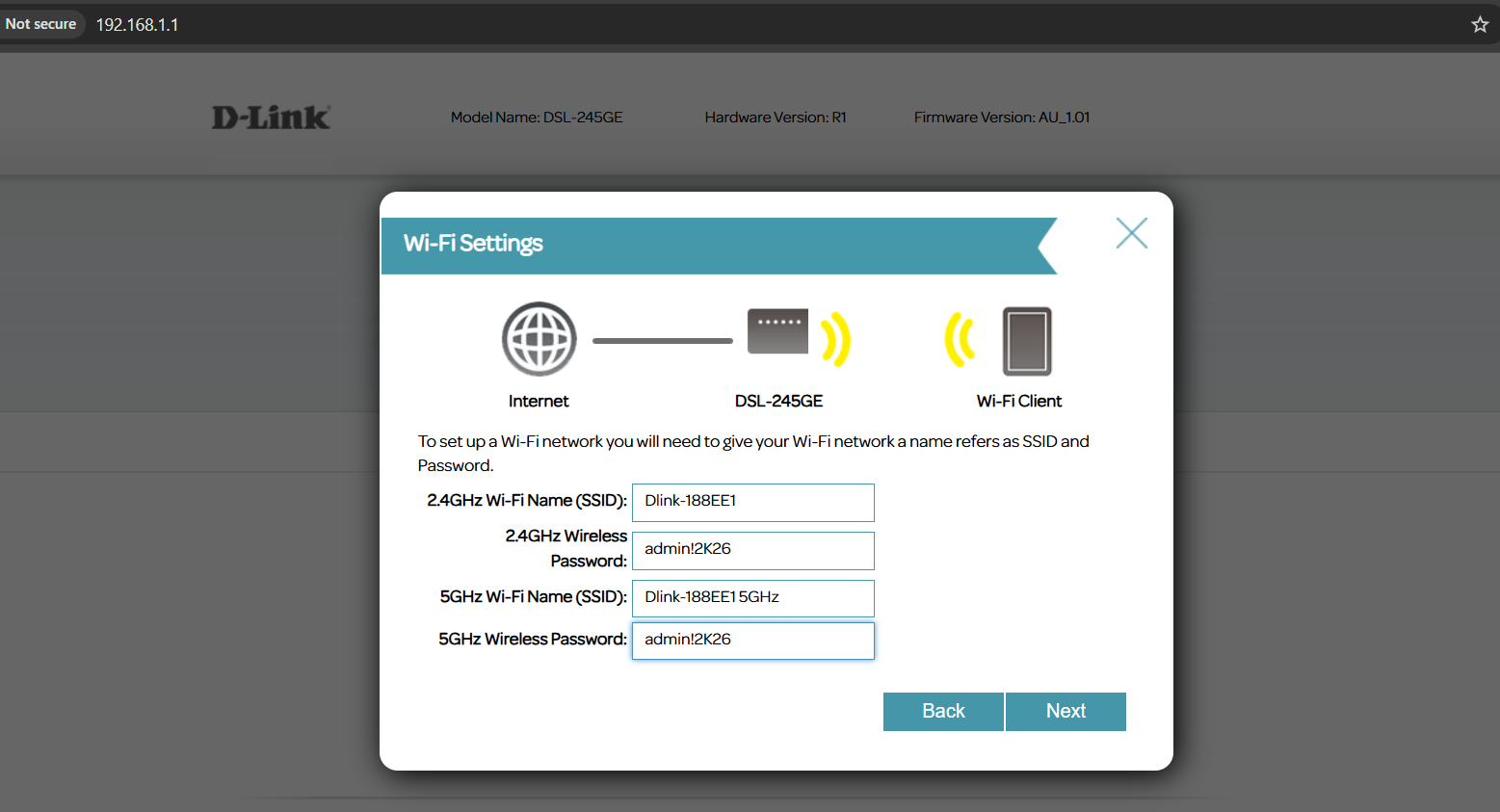

Customer may or may not set up own Wi-Fi name and password.

Click on ‘Next’

Follow Wi-Fi password guidelines.

Step 8

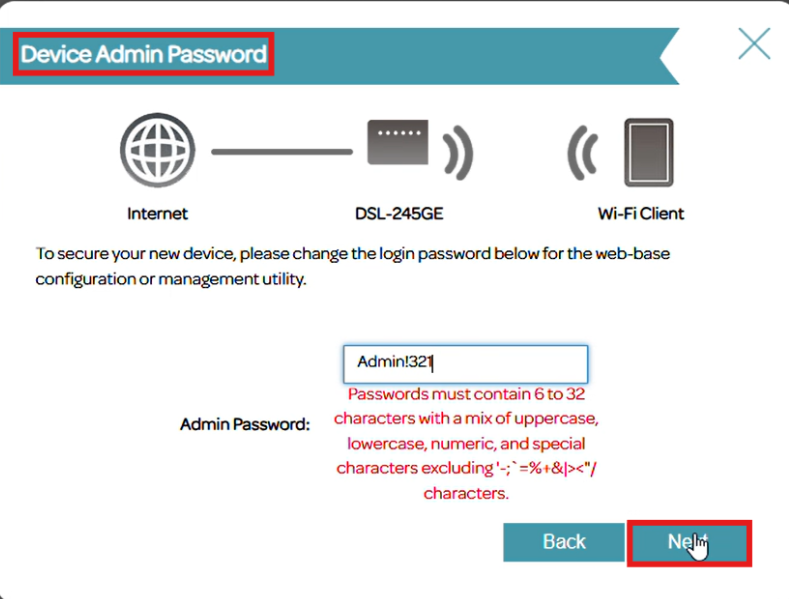

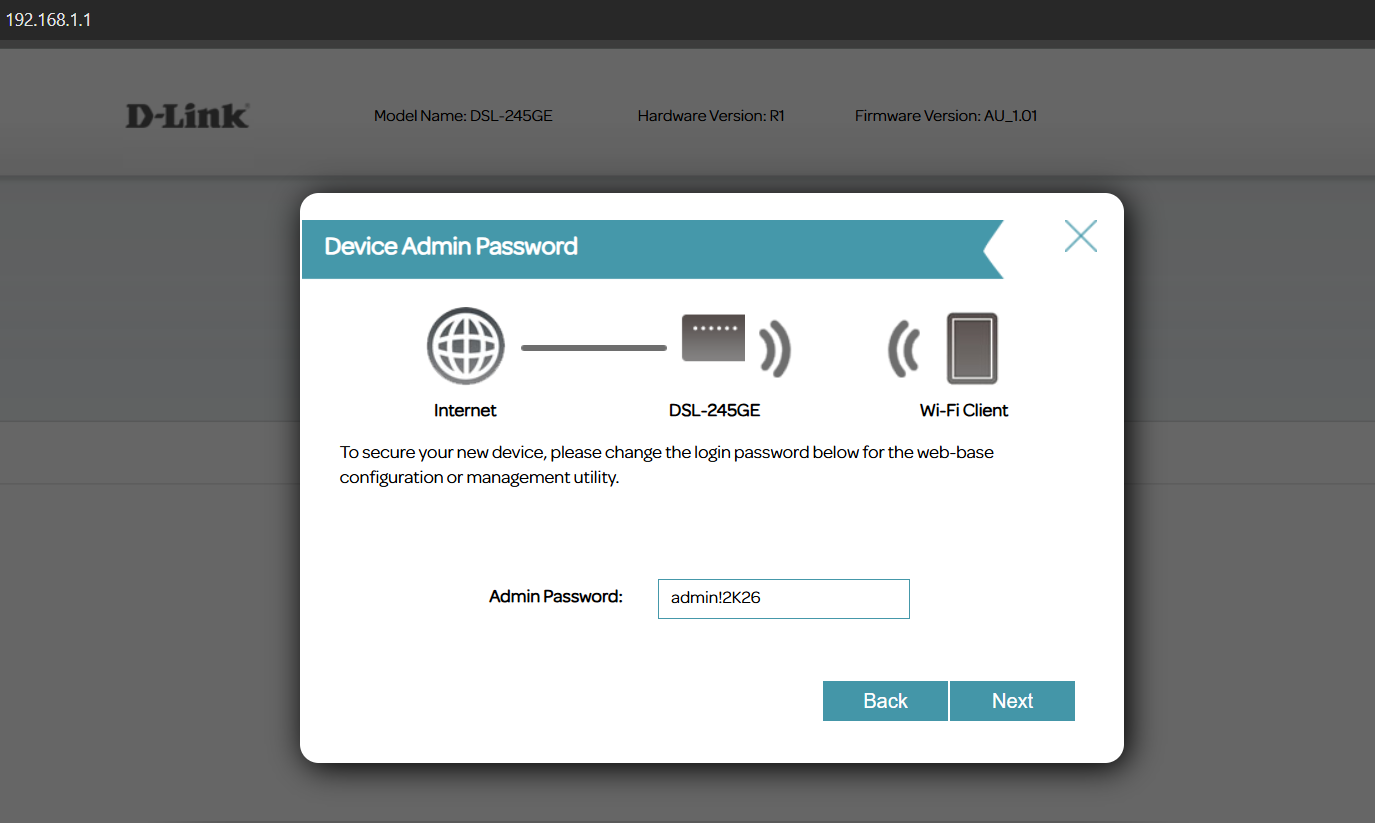

Under ‘Device Admin Password’, customer may keep or change the default password.

Click ‘Next’.

Follow admin password guidelines.

Step 9

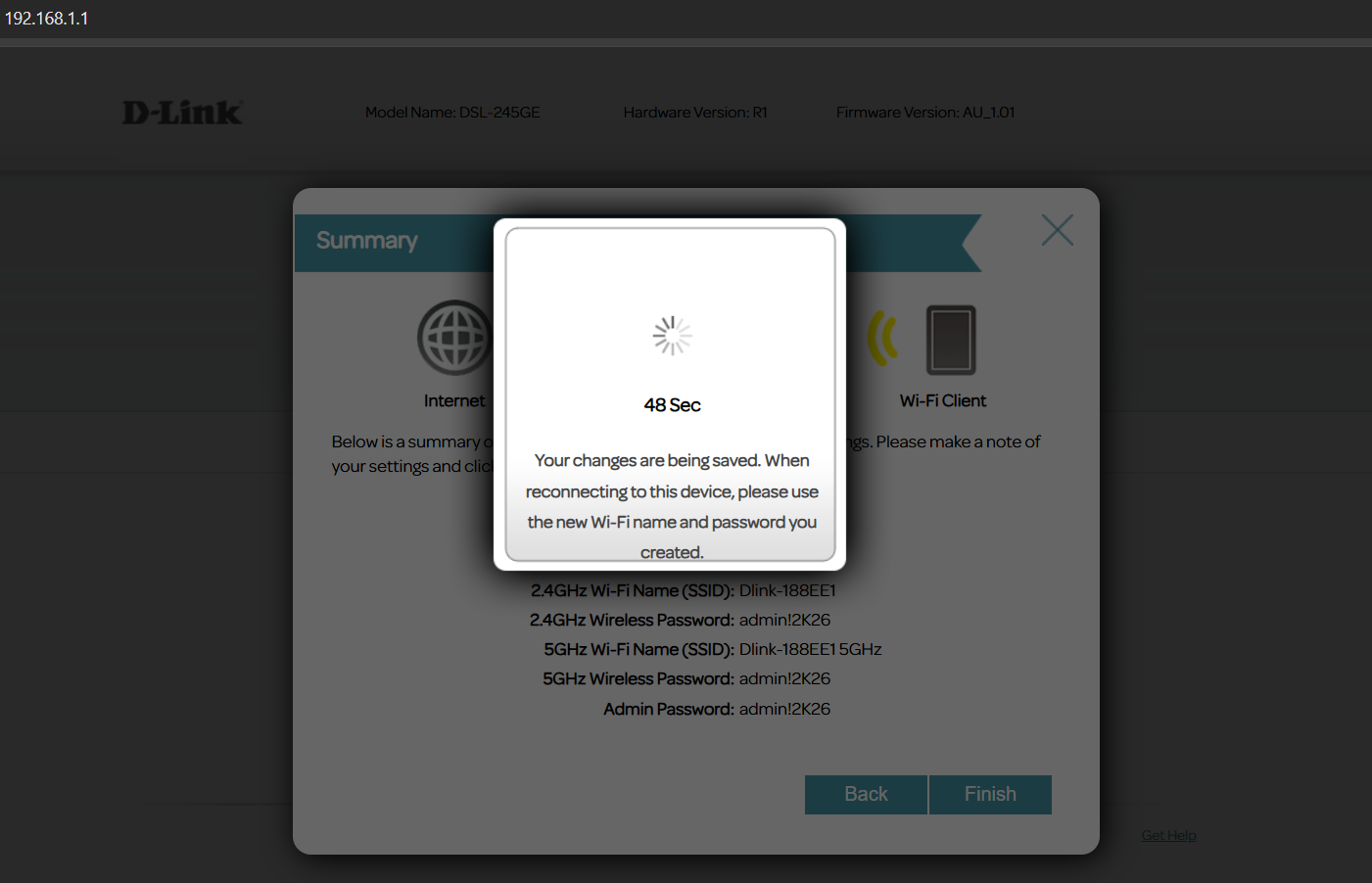

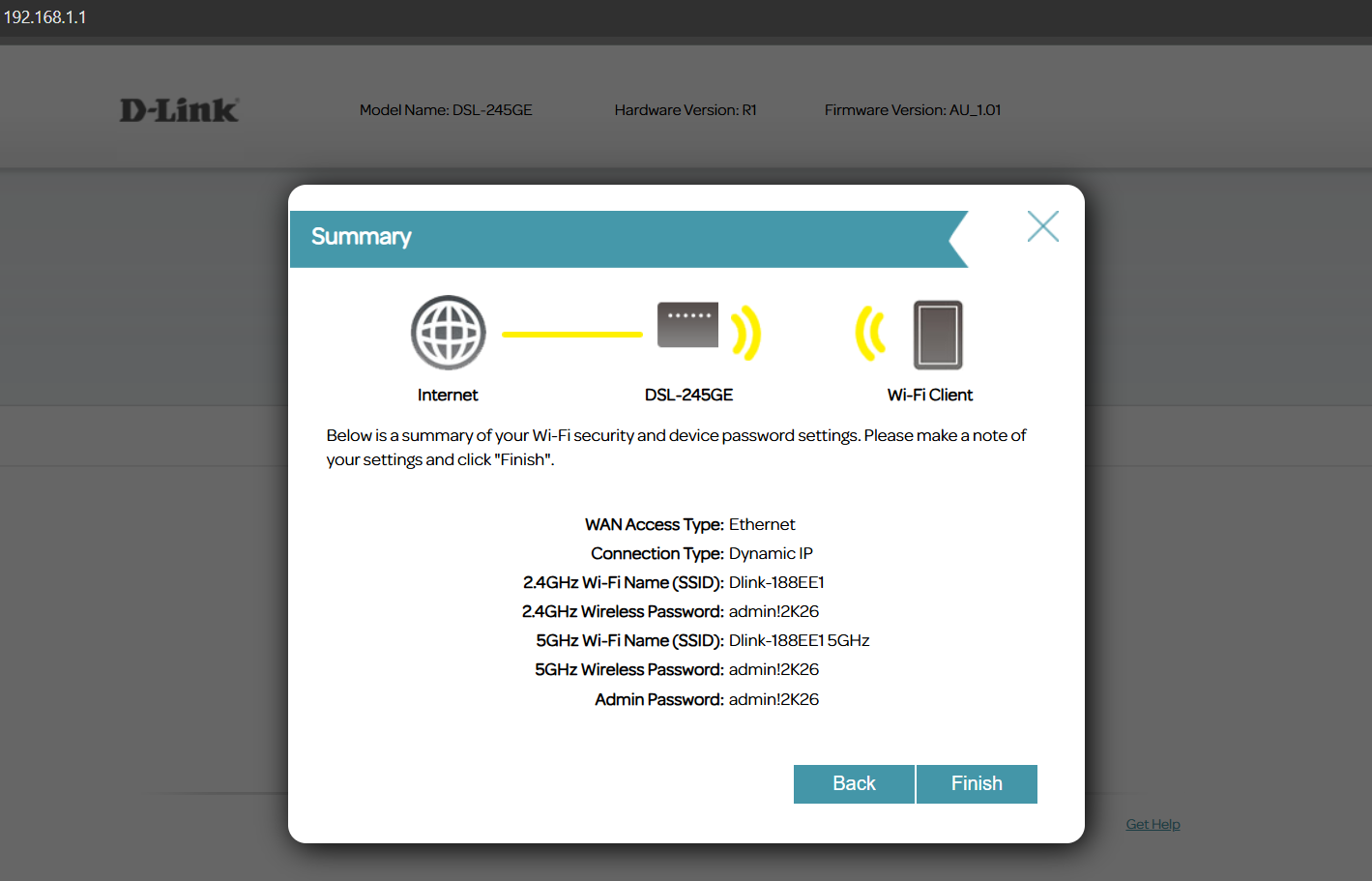

Then the setup summary will be displayed, just proceed by clicking ‘Finish’.

Step 10

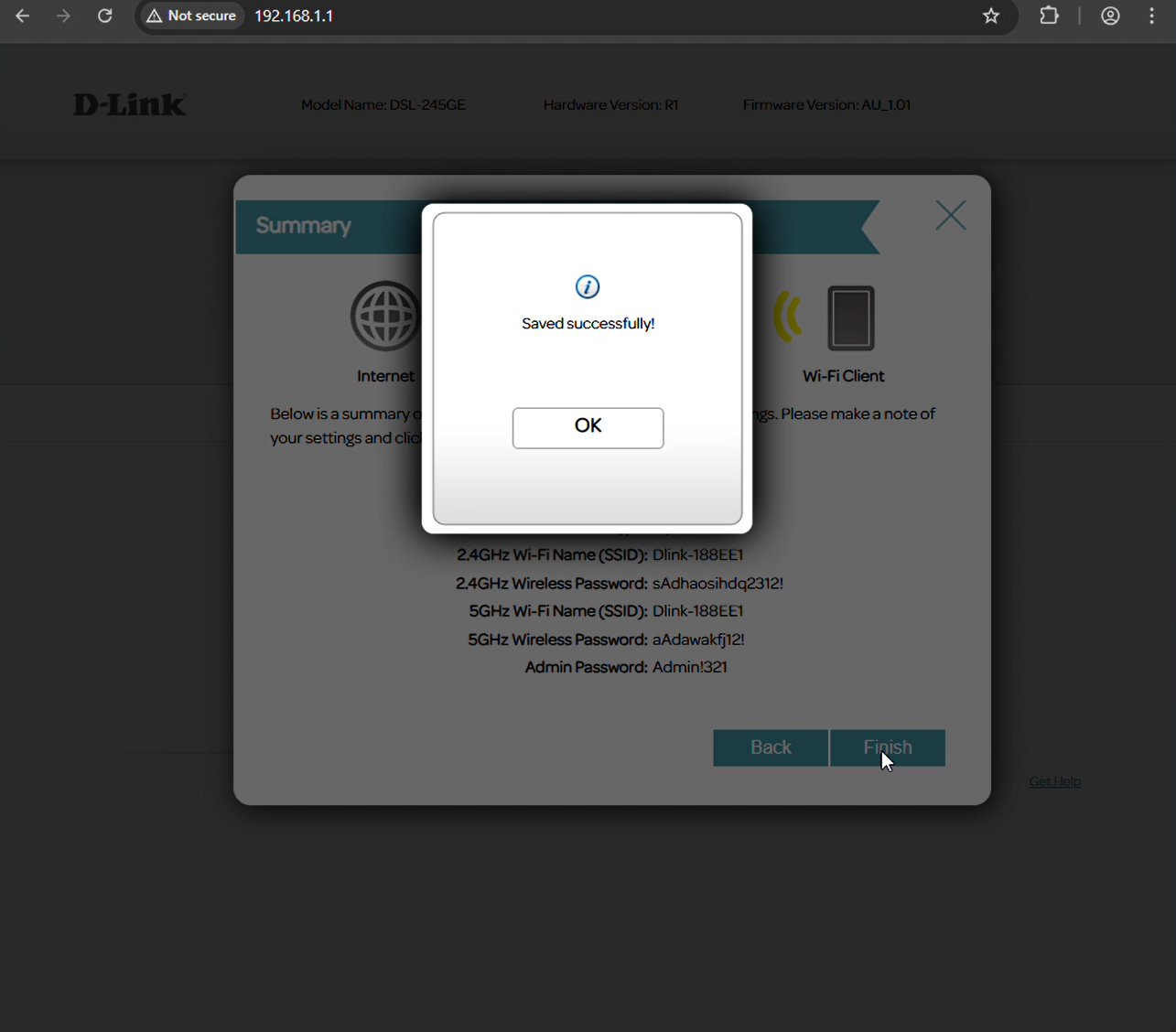

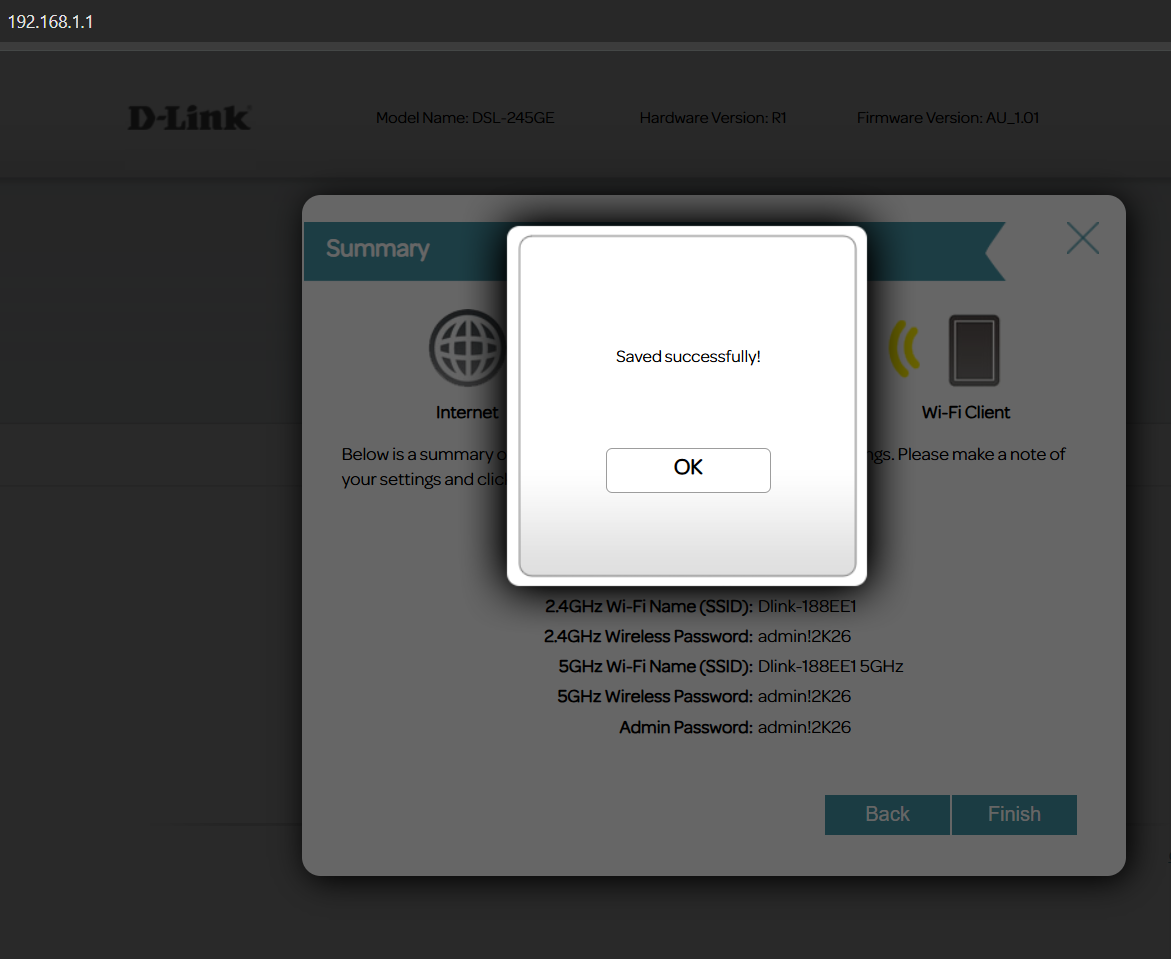

Once it is successfully saved, click ‘OK’.

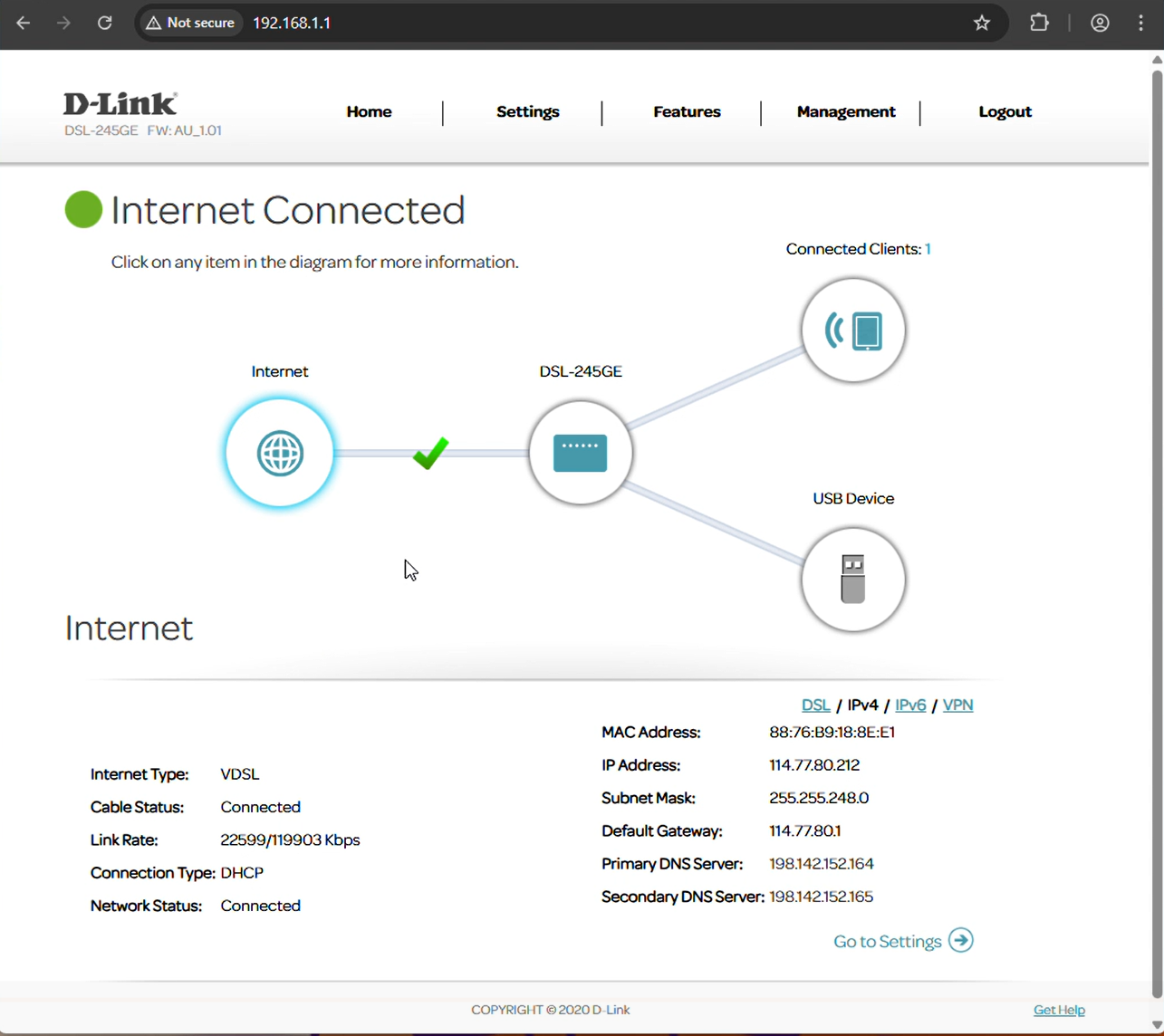

Wait for about 1 or 2 minutes until status changes to ‘Connected’.

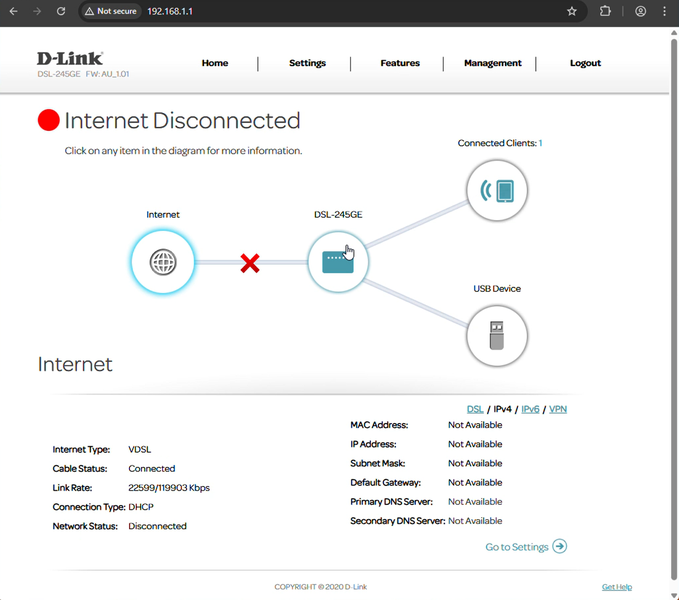

If it stays ‘Disconnected’, power cycle the modem router.

⚠️If Wi-Fi is used for configuration, make sure to reconnect to Wi-Fi once loaded, especially if Wi-Fi credentials got personalised, as it would disconnect from the Wi-Fi since new credentials are applied.

Step 11

Check the Connection:

Check that your internet connection is working properly by accessing www.google.com in your web browser.
Test your speed by typing www.speedtest.net in your web browser and click ‘GO’.

You are connected now to amaysim Home internet!

Are you still not connected? Contact us to help you.

Is this guide helpful? Give us feedback here.

Modem guide for FTTN and FTTB

Step 1

Connect your 💻 device to your modem using one of the 2 options described below:

Option 1: Wireless

Connect your💻 device to your Home Network, also known as Home Wi-Fi. ⚠️Your home doesn’t have Internet yet, but that’s ok, you can still access your Home Network.

If you don’t know how to connect to your Home Network, follow this guide first.

Option 2: Wired

Plug an Ethernet cable (see the picture) from your 💻 to the back part of your modem.

Step 2

On your 💻 device, open your internet browser (e.g. Chrome, Safari, Edge ), type http://192.168.1.1 on the address bar, and press enter.

Step 3

⚠️ The admin password is not the same as your Home Wi-Fi password. If you can’t remember it we’ll help you below.

Can’t remember your admin password? you’ll have to factory reset your modem. Press the ‘Reset’ button using a pin (as shown in the screenshot) for 10 seconds until the modem lights are off. Wait for 5 minutes and go back to Step 1.

⚠️ Be aware that when resetting your modem your Home Wi-Fi name & password will change to default. You’ll be able to define a preferred name & password if you want on Step 7.

Step 4

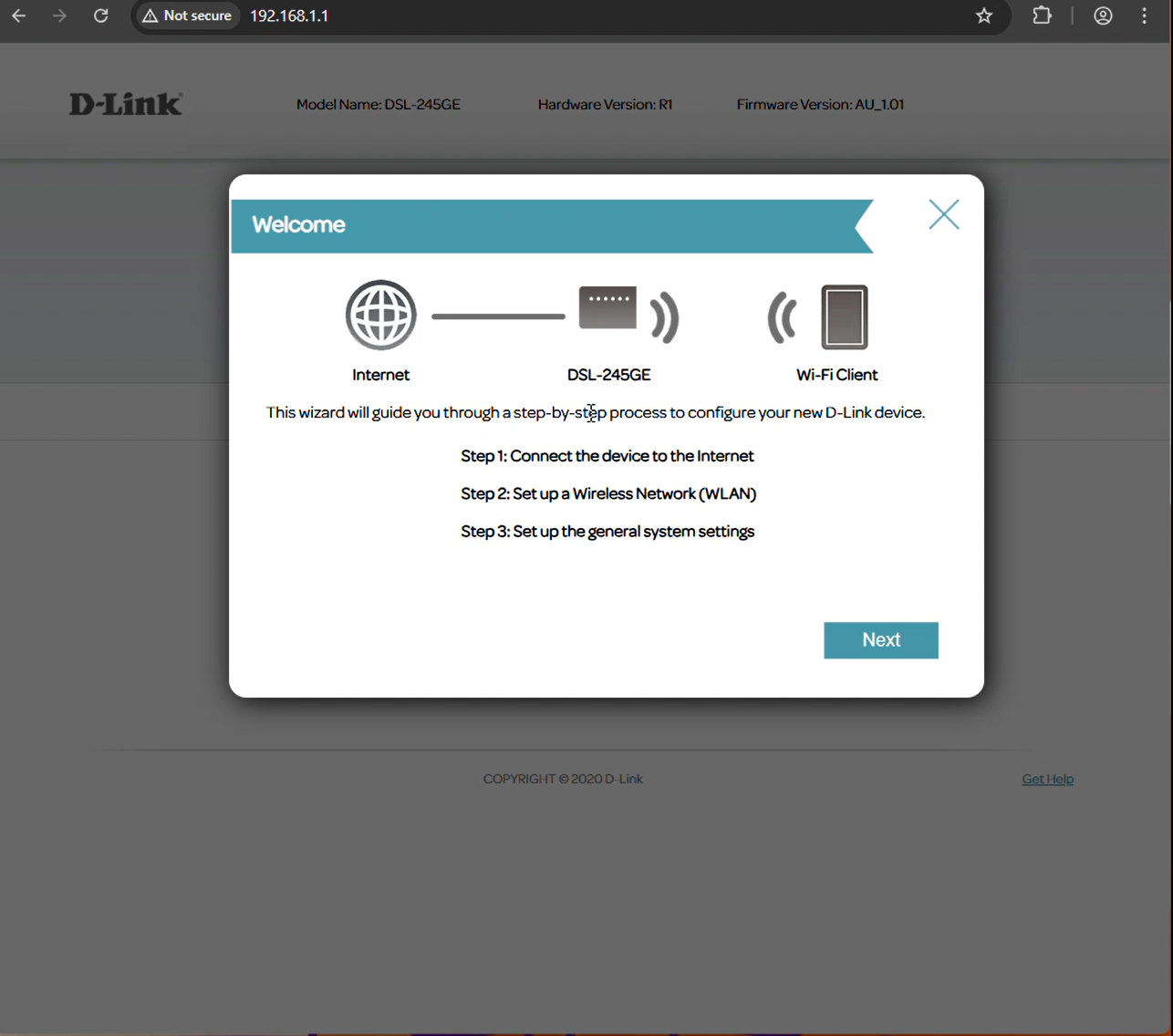

Once logged in, general guide will be displayed, just proceed by clicking ‘Next’.

Step 5

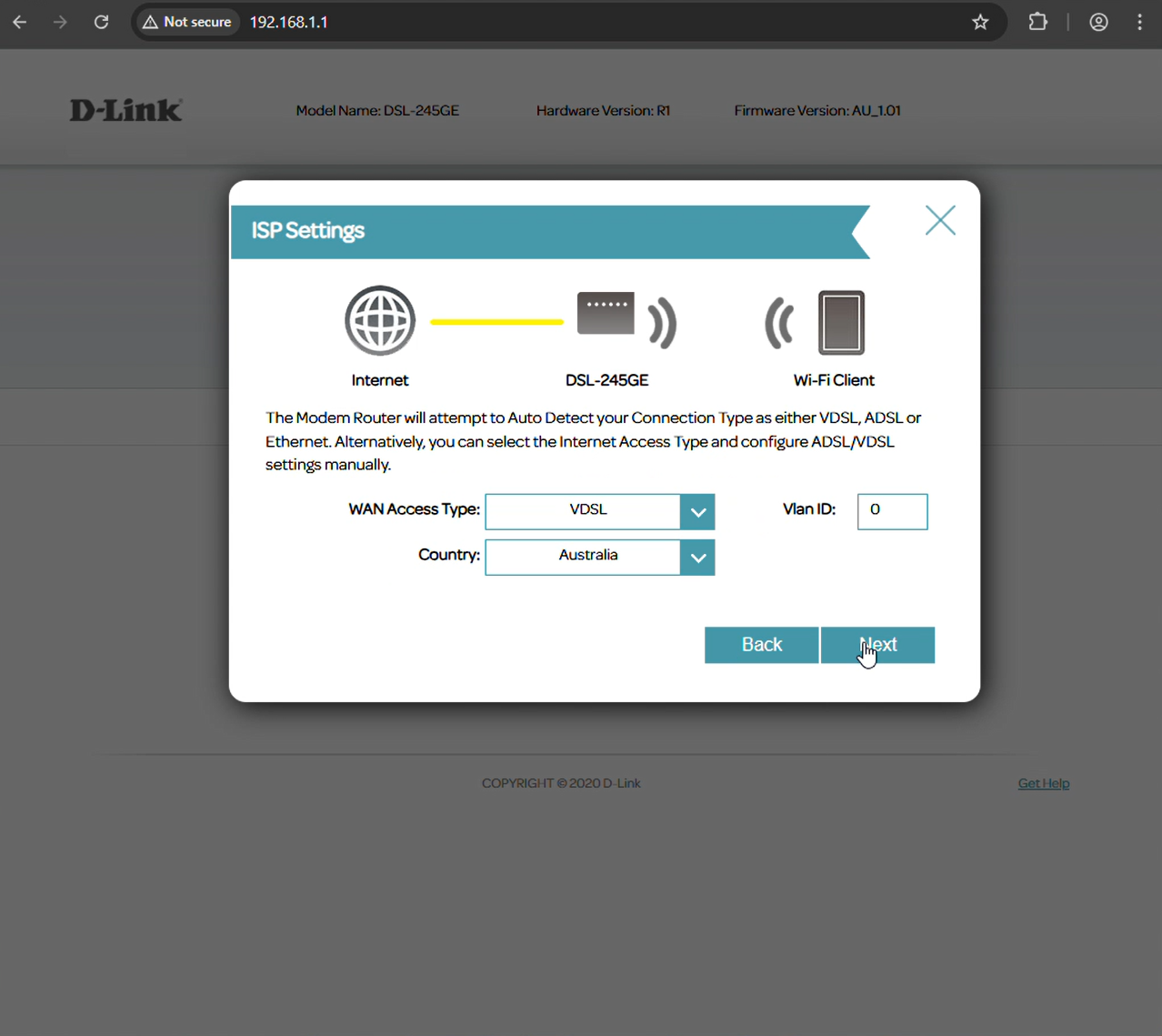

Under ‘ISP Settings’, make sure to choose ‘VDSL’ for WAN Access Type and set VLAN ID to 0 for disabled VLAN tag, then go ‘Next’.

Step 6

Under ‘Configure Your Internet Connection’, select Internet connection type to ‘DHCP Connection (Dynamic IP Address’.

Click Next.

Step 7

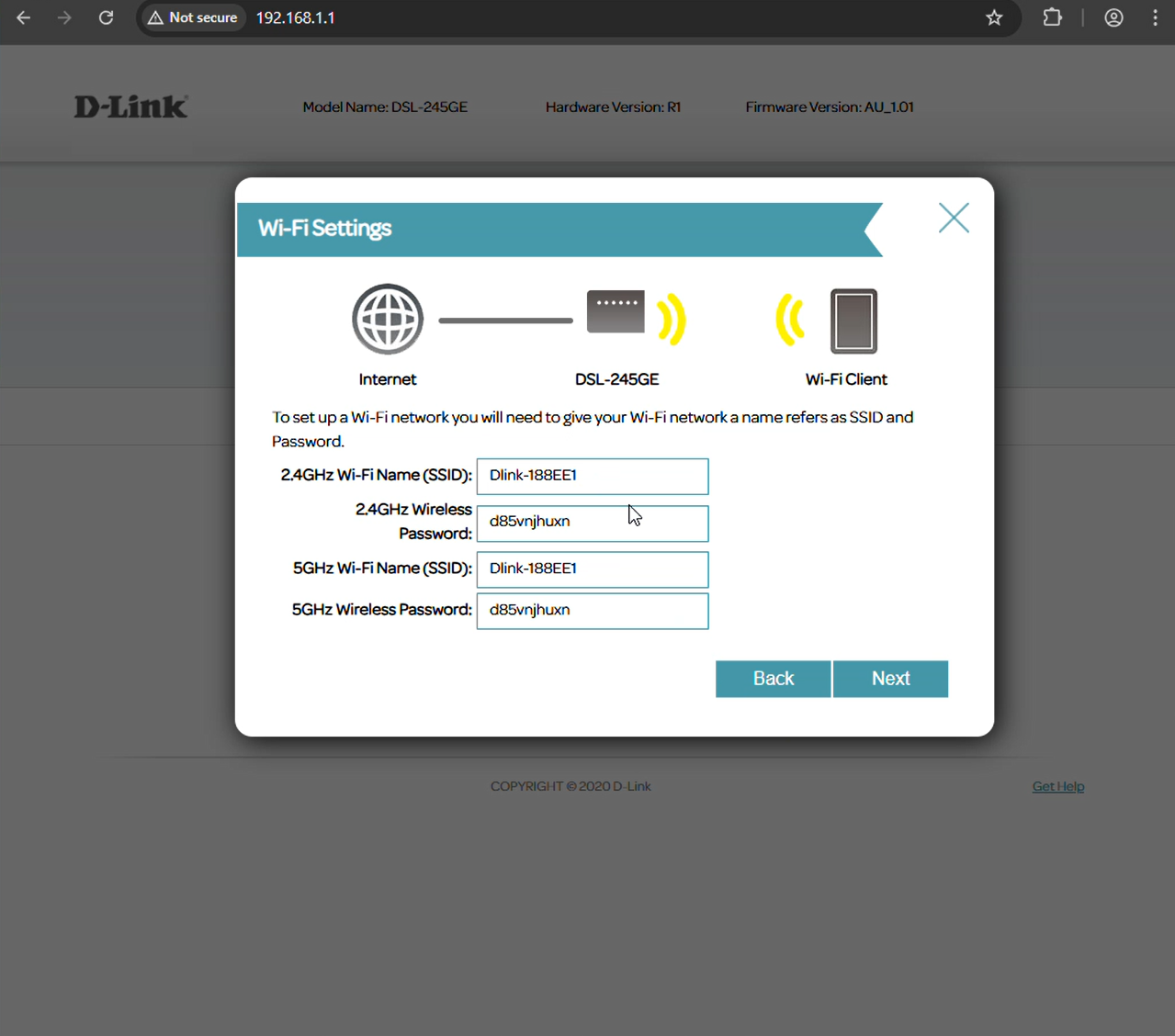

Customer may or may not set up own Wi-Fi name and password.

Click on ‘Next’

Follow Wi-Fi password guidelines.

Step 8

Under ‘Device Admin Password’, customer may keep or change the default password.

Click ‘Next’.

Follow admin password guidelines.

Step 9

Then the setup summary will be displayed, just proceed by clicking ‘Finish’.

Step 10

Once it is successfully saved, click ‘OK’.

Step 11

Check the Connection:

Check that your internet connection is working properly by accessing www.google.com in your web browser.
Test your speed by typing www.speedtest.net in your web browser and click ‘GO’.

You are connected now to amaysim Home internet!

Are you still not connected? Contact usto help you.

Is this guide helpful? Give us feedback here.

Wi-Fi Settings Guide

Step 1

Connect your 💻 device to your modem using one of the 2 options described below:

Option 1: Wireless

Connect your💻 device to your Home Network, also known as Home Wi-Fi. ⚠️Your home doesn’t have Internet yet, but that’s ok, you can still access your Home Network.

If you don’t know how to connect to your Home Network, follow this guide first.

Option 2: Wired

Plug an Ethernet cable (see the picture) from your 💻 to the back part of your modem.

Step 2

On your 💻 device, open your internet browser (e.g. Chrome, Safari, Edge), type http://192.168.1.1 on the address bar, and press enter.

Step 3

⚠️ The admin password is not the same as your Home Wi-Fi password. If you can’t remember it we’ll help you below.

Can’t remember your admin password and default password didn’t work? you’ll have to factory reset your modem. Press the ‘Reset’ button using a pin (as shown in the screenshot) for 10 seconds until the modem power light blinks. Wait for 5 minutes and create your admin password credentials.

⚠️ Resetting your modem puts your Home Wi-Fi name & password to default. Set up your Ethernet WAN IPoE credentials then you’ll be able to define a preferred name & password if on the next steps.

Step 4

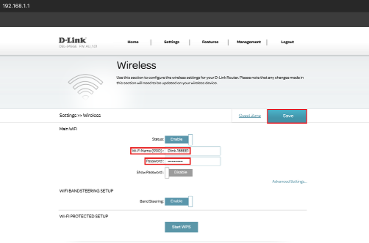

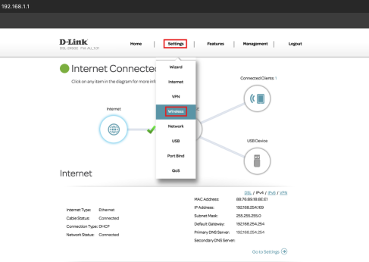

Go to Settings > Wireless.

Step 5

Change the Network Name (SSID) field and/or Password then Click Save.

Step 6

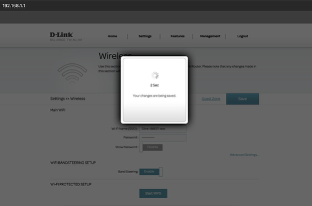

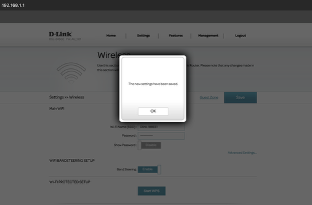

Wait until settings are saved. Reconnect to Wi-Fi once saved, since Wi-Fi credentials are successfully personalised, as it would disconnect from the Wi-Fi since new credentials are applied.

Reconnected, then successful change of Wi-Fi credentials done.

Step 7

Check the Connection:

Check that your internet connection is working properly by accessing www.google.com in your web browser.
Test your speed by typing www.speedtest.net in your web browser and click ‘GO’.

You are connected now to amaysim Home internet!

Are you still not connected? Contact us to help you.

Is this guide helpful? Give us feedback here.
